5. Who is calling

A Policy is an object. Turning an HTTP request into one is the last step, and it is the one StageFlow deliberately has no opinion about.

Authentication is not in the framework and will not be. The core takes a policy; tokens, headers, sessions, tenants and subscriptions are things every platform already has its own answer to, and a framework's answer would be one more thing to fight. In the example the whole of it is forty lines in app/auth.py, and a real backend replaces that file without touching anything else.

Plans are a table

PLANS: dict[str, Policy] = {
    "full":  Policy(),                     # the unrestricted example
    "basic": Policy(stages=RULES_ONLY | PLUMBING, node_types={...}, limits=...),
    "pro":   Policy(node_types=None, limits=Limits(counters={"tokens": 200_000, ...})),
}

A real platform looks a tenant up and builds the policy from their subscription. The words "plan", "basic" and "pro" are the platform's business — so is the price list that turns result.meters into an invoice.

One thing is worth copying from the example even so: basic can run something. It has its own pipeline, 06-rules-only.json, which is the whole bot with no model in it. A tier that can run nothing at all is not a cheaper tier, it is a broken one, and it teaches a user nothing except that the product does not work.

The credential decides

AUTH_HEADER = os.environ.get("SF_AUTH_HEADER", "Authorization")
TOKENS = _parse_tokens(os.environ.get("SF_TOKENS", ""))   # "tok:plan,tok:plan"


def caller_plan(request: Request) -> str:
    if not TOKENS:                       # nothing configured: tell nobody apart
        return OPEN_PLAN
    token = credential(request)
    if token is None:
        raise HTTPException(401, f"no credentials: send a token in the '{AUTH_HEADER}' header")
    plan = TOKENS.get(token)
    if plan is None:
        raise HTTPException(401, "the credentials were not recognised")
    return plan

The header's name is configurable because backends disagree — Authorization: Bearer …, X-Api-Key: …, whatever a gateway put there — and the editor has no business deciding. With nothing configured there is no authentication at all, and the example starts and works, which is the point of an example.

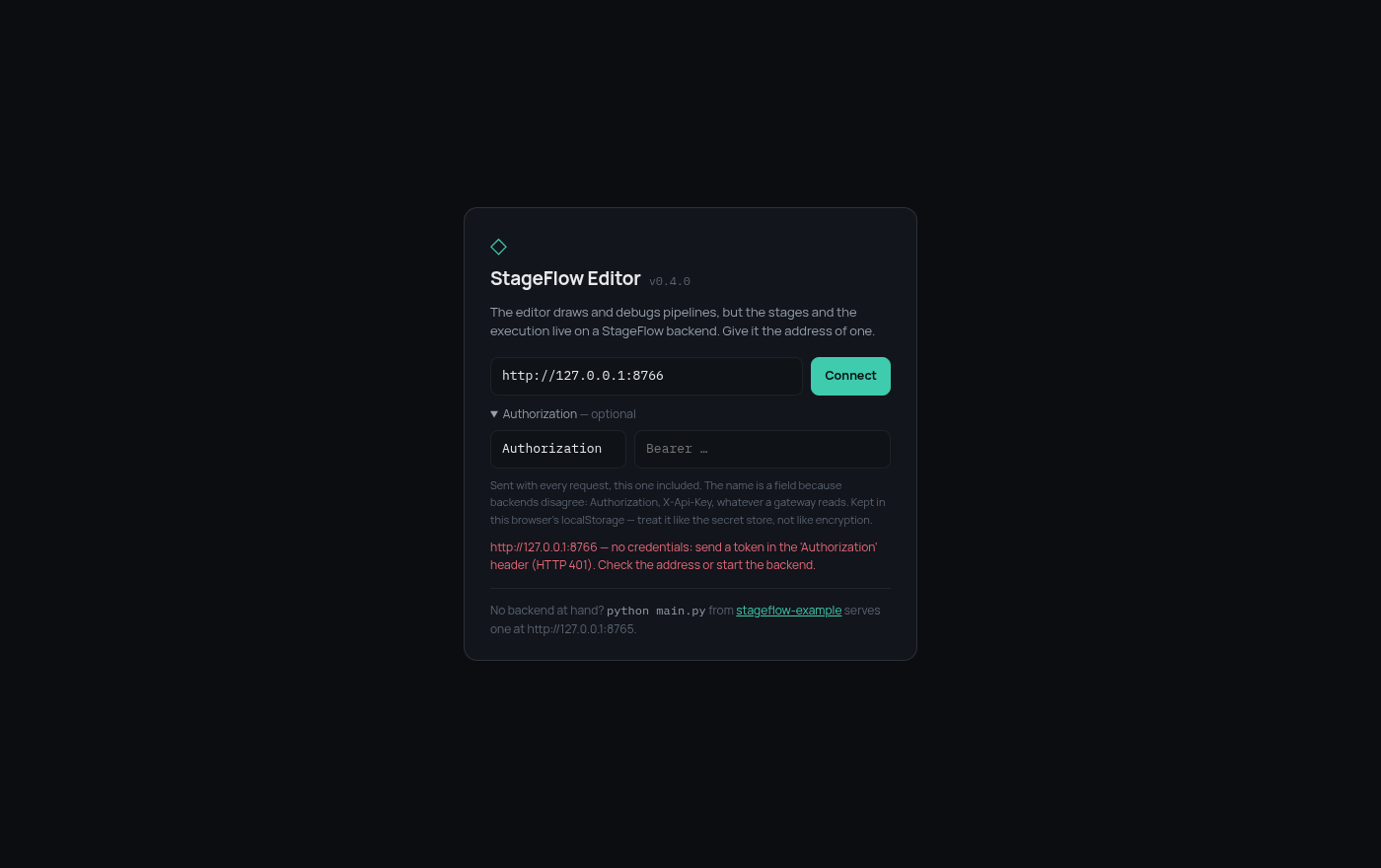

On the editor's side that is a field, and its value is checked by the same request that checks the address — so a wrong token is wrong on the screen where it can be corrected, not at the first run:

Being shown a plan is not being on one

Here is the part worth getting right, because the obvious-looking shortcut destroys everything the previous two steps built.

The read-only endpoints take ?plan=, unverified, from anyone:

@router.get("/meta")
async def meta(caller: CallerPlan, plan: ShownPlan = None) -> dict:
    shown = plan or caller
    policy = policy_for(shown)
    return {"api": 1, "plan": shown, "plan_source": source_of(plan),
            "plans": plan_names(), **capabilities(policy), "limits": _limits_of(policy)}

A name is not a permission. Drawing is not running, and an editor that has to authenticate before it can grey out a palette entry is an editor nobody configures — so "what would this graph look like on the cheaper tier" is a question anybody may ask. plans is the list to offer, so no client has to hard-code names it cannot know.

The run takes no such parameter:

@router.post("/run", status_code=201)
async def start_run(body: RunRequest, caller: CallerPlan) -> dict:
    if body.plan is not None and body.plan != caller:
        raise HTTPException(403, f"this graph was prepared for plan '{body.plan}', "
                                 f"and these credentials are on '{caller}'")
    run = runs.start(body.model_dump(), policy_for(caller))

body.plan travels in the opposite direction: it is what the client drew against, not a request to run on it. Saying it lets the disagreement be named, which is a far better answer than a pile of validation errors about individual stages:

Wire ?plan= into the run instead — one line, and an obvious-looking one — and every ceiling in the previous two steps becomes a query parameter. The example's check_pipelines.py checks that nobody did; it is the kind of property that no endpoint test notices being broken.

What the editor makes of it

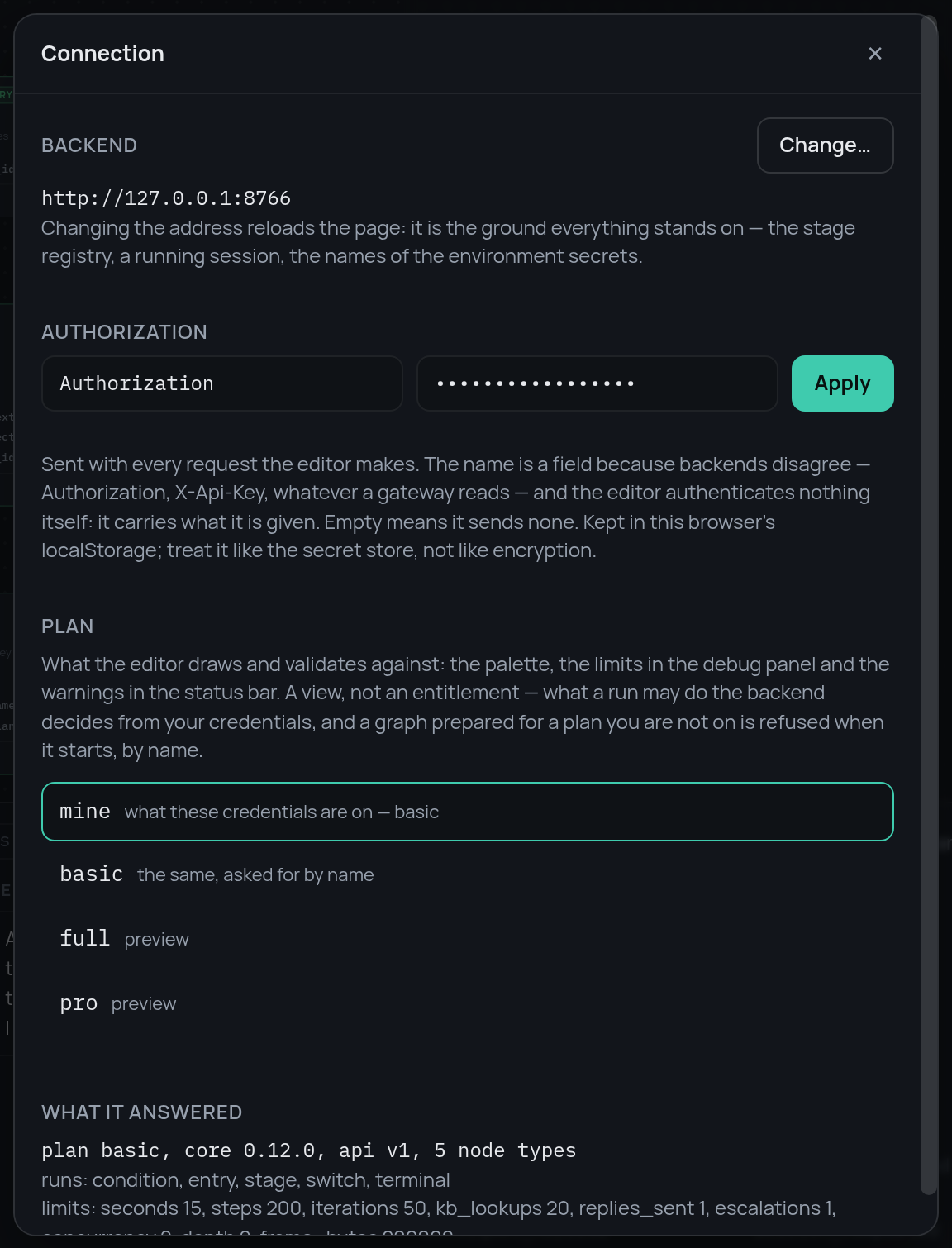

All of it lands in one dialog — "File" → "Connection…", or a click on the backend line in the status bar:

The address (changing it reloads; it is the ground the session stands on), the credential (applied in place — a token goes stale during the work, and a refused one is rolled back so the session survives), the plan to draw against, and what the backend answered. ?plan=basic on the editor's own URL opens it that way, and the status bar marks a preview as a preview so it cannot be mistaken for an allowance.

Where the line falls

	Framework	Platform
what a graph may contain	Policy	which policy
what a run may spend	Limits, meters, BudgetExceeded	what a unit costs
who the caller is	—	all of it
a monthly quota, a queue, a pool	—	all of it

The last row matters as much as the others. concurrency: 8 bounds one run; a hundred runs are eight hundred tasks, and the core cannot know how many runs exist. Admission — the queue, the per-tenant pool, the monthly budget — is the platform's, and the core's part is to hold one run's ceiling and report honestly what it cost.

---

That is the whole backend: stages, endpoints, a policy, meters and a credential. The finished thing is stageflow-example, about six hundred lines of Python.
