The terminal node

The end of the run, and the only node that says what the run was for: what it returns, and which variables leave the frame as artifacts.

{
  "id": "answered",
  "type": "terminal",
  "result": { "status": "answered", "channel": "email" },
  "artifacts": ["reply", "topic", "urgency"]
}

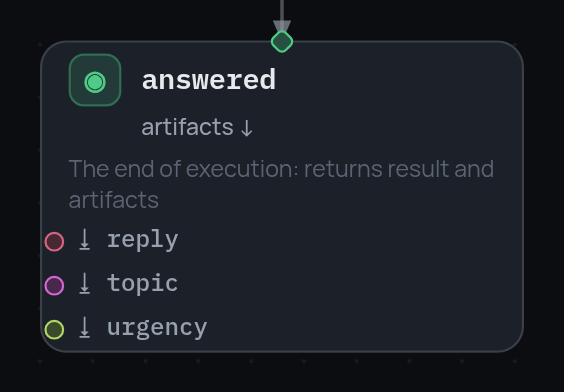

A terminal node on the canvas

A session that reaches it returns exactly that:

result = await session.run()
result.result             # {"status": "answered", "channel": "email"}
result.artifacts["reply"] # the value of vars.reply at that moment
  • result is handed back as written — a plain dict of your own shape, not interpreted by the core. It is what a caller switches on, so it is worth making it say which end this was, not just "done".
  • artifacts names variables to read out of the frame. A name that is not in the frame yields null rather than an error — a terminal is not the place to discover a missing value, and is easy to misread as "the stage returned nothing". Write the names the graph really produces.
  • A terminal has no next: it is the end of the road, and the graph may have as many of them as it has outcomes.
  • expose is applied before the result is taken, so a variable renamed there can be exported in the same node.

Ending from inside a block

A terminal ends the whole run, wherever it stands — inside the body of a try block, a branch of a parallel node, the body of a map loop. The enclosing node does not get to continue: the block sees that the session has finished and stops with it, so a map halfway through its third element stops there.

That is what makes an early exit expressible — a guard that finds a closed ticket and ends the run on the spot:

{ "id": "closed", "type": "condition", "condition": "vars.status == 'closed'",
  "then": "nothing_to_do", "else": "work" },
{ "id": "nothing_to_do", "type": "terminal", "result": { "status": "skipped" } }

Running off the end

Reaching no terminal at all is legal but silent: a condition without else, a switch with no matching case, a stage whose next is absent. The session ends with result = null and no artifacts. If a road is meant to end, give it a terminal — the result is then the difference between "finished this way" and "fell off the graph".
